Brand Name : LED FULGOR
Model Number : FG31-300*1200-2P
Certification : CE SAA RoHS
Place of Origin : GUANGDONG,CHINA
MOQ : 50
Price : Negotiation
Payment Terms : T/T
Supply Ability : 5,000 PCS per ,month
Delivery Time : 7-10days
Packaging Details : Inner Box:QTY: 1pcs Box Size: L132*W10*H8cm Weight: 2.5kg Outside Box:QTY: 6pcs Box size: L137*W21.5*H16.5cm N.W/ G.W: 14kg/ 16.5kg
Brand name : Led fulgor
Driver : optional
cetification : CE SAA RoHS
installtion way : Recessed or suspension
Appilication : market, school, home office, etc.
Model Number | FG31-300*1200-2P |
Brand Name | LED Fulgor |
Voltage | AC100-277V/AC200-240V 50/60Hz |
Material | Iron+aluminum |
LED Source | lumileds/osram |
LED Driver | optional |
Power | 48W optional |
dimming | No dimming, 0-10Vdimmer, DALI dimmer selectable |
Lighting Effect | 110-120lm/w |
Color Temperature(CCT) | 3000K/4000K/6000K adjustable |
CRI (Ra>) | ≥80 |
UGR | <16 |
Luminous Flux | 4320-5760lm |
Housing | Iron+aluminum |
Beam Angle | 60° |
Working Temperatue | -20℃ to 55℃ |
IP Rating | IP40 |
Working Lifetime | 60000h |
Warranty | 3-years/5years selectable |
Dimension | 300*1200 |
Packing Size | inner box: L640*W35*H640mm Outer box L650*W190*H650mm 5PCS/box |
1: In order to ensure a better lighting effect, please clean the LED lights once a year.
2: Before carrying out maintenance work, please make sure that the power is turned off.
3: To avoid damaging the bulb, please do not use chemical solvents during routine maintenance.
4: If you need to replace any components or wires of the bulb, please select components or wires with the same specifications.
1. Working temperature: -20℃~55℃.
2. Avoid using strong acid and alkali objects near the working environment.
3. If the working environment is outdoors, please make the docking waterproof.
4. Please install the bulb according to the instructions in this user guide.
5. In order to avoid injury caused by falling of the bulb or electric shock, please do not modify the bulb at will.
6. Please turn off the light when you don’t need it to protect the life of the light as much as possible
![]() |

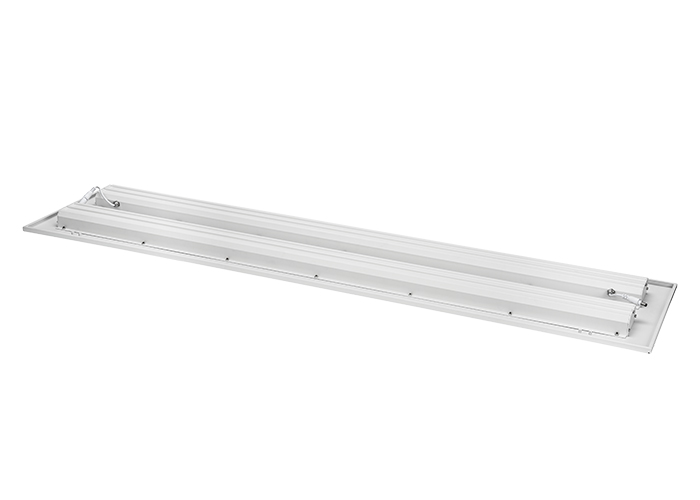

Embedded CCT IP40 Led Panel Light 48W 3000K 4000K 6000K Optional Images |
